Hello! 👋

I'm AveryArk

Senior Roblox Programmer

About Me

I'm an experienced Roblox programmer that specialises in system designs. I can develop complex tasks like Custom Networking, Custom Physics Replication, Custom Physics, Voxel Destructions and Combat System. If you need simple tasks, I can also put together abilities from resources, create a weather system and fully working UI frontend.

Luau Physics Networking Spatial Queries State Synchronization Server Authority Algorithms Parallel Luau Binary Serialisation Network Optimisation UI Design UX Design UI Coding Transaction Queueing Backend Security Framework Architecture State Management Data Persistence Asynchronous Programming

Projects

Ragdoll Physics

Snappy ragdoll physics that utilises the replication system I made.

View project details

LuauPhysicsNetworking

Networked Sequencer - Storyboard Engine

lua

Show code

1-- Suspends local execution until server confirmation is received
2local function register_replicate_context(self: StoryInternal, context_id: string)
3    local pending = self._PendingReplicateContexts[context_id] or {}
4    self._PendingReplicateContexts[context_id] = pending
5
6    local promise = self._Maid:AddPromise(Promise.new(function(resolve, reject, on_cancel)
7        local callback = function(confirmed)
8            self._ContextData[context_id] = confirmed
9            resolve(confirmed)
10        end
11        table.insert(pending, { callback = callback, startTime = os.clock() })
12    end))
13    table.insert(self._ActiveReplicatePromises, promise)
14    return promise
15end
16
17function Story.ReplicateContextAsync(self: StoryInternal, context_id: string, data: any)
18    if RunService:IsServer() then
19        -- Server validates and broadcasts confirmed state to all peers
20        Networking:BroadcastContext(self.Id, context_id, data)
21        return Promise.resolve(data)
22    end
23
24    if self.RunMode == "Subject" then
25        -- Subject sends hit claim to server and waits for confirmation
26        Networking:ReplicateContext(self.Id, context_id, data)
27        return register_replicate_context(self, context_id)
28    end
29
30    if self.RunMode == "Observer" then
31        -- Observers wait passively for server broadcast
32        if self._ContextData[context_id] ~= nil then
33            return Promise.resolve(self._ContextData[context_id])
34        end
35        return register_replicate_context(self, context_id)
36    end
37end

Storyboard is a strictly typed unified sequence engine, specifically designed for combat. It abstracts networking complexity and maximise reusability with Components. It has a built in context management pipelne to handle predictive client actions or general context communication between server and client.

View project details

LuauSpatial QueriesState SynchronizationServer Authority

Voxel Destruction Engine

lua

Show code

1
2-- Custom hitboxes using SAT theorm
3local function is_block_intersecting_aabb(part_cframe, part_size, box_cframe, box_size)
4    local D = part_cframe.Position - box_cframe.Position
5    local half_part = part_size / 2
6    local half_box = box_size / 2
7
8    local L = get_cframe_axes(part_cframe)
9    local E = { Vector3.xAxis, Vector3.yAxis, Vector3.zAxis }
10
11    local function check_axis(axis)
12        local t = math.abs(D:Dot(axis))
13        local Ra = (half_part.X * math.abs(L[1]:Dot(axis))) +
14                   (half_part.Y * math.abs(L[2]:Dot(axis))) +
15                   (half_part.Z * math.abs(L[3]:Dot(axis)))
16        local Rb = (half_box.X * math.abs(E[1]:Dot(axis))) +
17                   (half_box.Y * math.abs(E[2]:Dot(axis))) +
18                   (half_box.Z * math.abs(E[3]:Dot(axis)))
19        return t <= (Ra + Rb)
20    end
21
22    for i = 1, 3 do if not check_axis(L[i]) then return false end end
23    for i = 1, 3 do if not check_axis(E[i]) then return false end end
24    return true
25end
26-- Recursive subdivision
27local function check_voxelisation(hitbox_cframe, hitbox_size, hitbox_shape, cframe, size, shape, MIN_SIZE, THRESHOLD, voxels, debris, iteration, MAX_ITER)
28    if iteration >= MAX_ITER then return voxels, debris end
29
30    local can_voxelise, new_voxels = voxelise(cframe, size, shape, MIN_SIZE, THRESHOLD)
31    if not can_voxelise then
32        table.insert(debris, {cframe, size})
33        return voxels, debris
34    end
35
36    local intersecting = get_intersect_block(hitbox_cframe, hitbox_size, new_voxels)
37
38    for _, set in new_voxels do
39        if not table.find(intersecting, set) then table.insert(voxels, set) end
40    end
41
42    for _, set in intersecting do
43        check_voxelisation(
44            hitbox_cframe, hitbox_size, hitbox_shape,
45            set.cframe, set.size, set.shape,
46            MIN_SIZE, THRESHOLD, voxels, debris, iteration + 1, MAX_ITER
47        )
48    end
49    return voxels, debris
50end
51
52-- Replication of debris and debris transformation
53-- SerDes
54local position_sd = squash.f32()
55local rotation_sd = squash.f32()
56local DEBRIS_ID_SQUASH = squash.string(8)
57
58local DEBRIS_REPLICATION_RECORD = squash.record {
59    part_id = squash.T(DEBRIS_ID_SQUASH),
60    position = squash.T(squash.Vector3(position_sd)),
61    rotation = squash.T(squash.Vector3(rotation_sd))
62}
63
64-- SERVER: Binary serialization of debris transforms
65local function get_buffer(debris: BasePart)
66    local cursor = squash.cursor()
67    local x, y, z = debris.CFrame:ToEulerAnglesXYZ()
68
69    DEBRIS_REPLICATION_RECORD.ser(cursor, {
70        part_id = debris.Name,
71        position = debris.CFrame.Position,
72        rotation = Vector3.new(x, y, z)
73      })
74    return squash.tobuffer(cursor)
75end
76
77-- CLIENT: Batched spatial interpolation
78step_connection:Connect(function(dt)
79    local parts, cframes = {}, {}
80
81    for part, target_cframe in client_active_debris do
82        if part.CFrame ~= target_cframe then
83            table.insert(parts, part)
84            table.insert(cframes, part.CFrame:Lerp(target_cframe, 0.175))
85        end
86    end
87
88    if #parts > 0 then
89        -- Fires CFrame updates for thousands of parts in a single C++ call
90        workspace:BulkMoveTo(parts, cframes)
91    end
92end)
93

Highly performant and optimised system for real time voxelisation destructions and debris replicating. It uses Separating Axis Theorem recursively to find the smallest expected part from larger parts. Parallel Luau is utilised to make the entire thing faster and more performant.

View project details

LuauSpatial QueriesAlgorithmsParallel LuauBinary SerialisationNetwork Optimisation

UI Design and UI Frontend Implementation

I'm also a fullstack UI Designer, I can design and implement UIs. I designed and implemented all the UIs in the video

View project details

LuauUI DesignUX DesignUI Coding

Dialogue System

lua

Show code

1-- Dialogue is an easily customisable class
2dialogueIndex = {
3        [1] = "Ah, another adventurer seeking the finest craftsmanship! I've got just the thing for you.",
4        [2] = "Take a look at this beauty. Forged with care and reinforced with enchanted steel, it'll withstand the toughest of battles. A true masterpiece, if I say so myself",
5
6        -- Interaction --
7        [3] = "Goodbye",
8        [4] = "Ok",
9        [6] = "Claim Loot"
10},
11
12dialogue = {
13  [1] = function(session: dialogueClasss)
14      local dialogue = require(ReplicatedStorage.client.dialogue)
15
16      session:reset()
17      session:text(1, true)
18      session:manifest()
19      session:wait()
20      session:button(4)
21      session:onButton(4):Wait()
22
23      session:reset()
24      session:text(2, false)
25      session:wait()
26      session:loot({
27              [dialogue.lootModifier.icon] = "rbxassetid://13812120467",
28              [dialogue.lootModifier.text] = "Iron Sword",
29              [dialogue.lootModifier.lootType] = dialogue.lootType.item,
30              [dialogue.lootModifier.quantity] = 1,
31      })
32      session:button(6, {
33              [dialogue.buttonModifier.backgroundColor] = Color3.fromRGB(86, 255, 67),
34              [dialogue.buttonModifier.shadowColor] = Color3.fromRGB(40, 40, 40)
35      })
36      session:button(3)
37      session:onButton(6):Once(function()
38              session:Destroy()
39      end)
40      session:onButton(3):Once(function()
41              session:Destroy()
42      end)
43  end
44}
45

A responsive dialogue system with a polished UI that I designed and implemented myself, focused on smooth interaction.

View project details

LuauUI DesignUX DesignUI Coding

Open link

Inventory System

lua

Show code

1-- First In First Out Transaction Queue
2-- Queues requests to ensure inventory state mutations are handled strictly
3-- One at a time per player, preventing item duplication exploits.
4local function request_transaction(player: Player, callback)
5    local queue = get_transaction_queue(player)
6
7    return queue:Enqueue(function()
8        return Promise.new(function(resolve, reject)
9            -- Craftsman.DataServer handles the Reflex immutable state updates
10            Craftsman.DataServer:UpdateState(player, function(state)
11                local new_state = Craftsman.TableUtil.DeepClone(state)
12                callback(new_state, resolve, reject)
13                return new_state
14            end)
15        end)
16    end)
17end
18
19-- Strict Binary Networking Schema using ByteNet Max
20-- It compresses inventory operations into really small byte payloads
21return ByteNet.defineNamespace("Inventory", function()
22    return {
23        packets = {
24            DragItem = ByteNet.definePacket({
25                value = ByteNet.struct({
26                    SourceSlot = ByteNet.optional(ByteNet.uint8),
27                    SourceLocation = ByteNet.optional(ByteNet.string),
28                    TargetSlot = ByteNet.optional(ByteNet.uint8),
29                    TargetLocation = ByteNet.optional(ByteNet.string),
30                }),
31            }),
32            SplitItem = ByteNet.definePacket({
33                value = ByteNet.struct({
34                    SourceSlot = ByteNet.uint8,
35                    Quantity = ByteNet.uint16,
36                }),
37            }),
38        },
39    }
40end)

This inventory UI, Frontend Coding and Backend Coding is completed in 7h within a day of dedicated working.

A rigid inventory system designed with data safety in mind. It is designed fundementally to prevent duplication exploits and data issues. (This is open source so you can check if you click here)

View project details

LuauTransaction QueueingBackend SecurityUI DesignUX DesignUI Coding

Open link

Craftsman Engine Framework

A modular, Promise driven game framework engineered for high concurrency environments. My standard workflow involves utilising DocumentService for session locking and data persistence, Reflex for immutable states, and ByteNet Max for high performance binary serialization and network traffic optimization.

View project details

LuauFramework ArchitectureState ManagementData PersistenceAsynchronous Programming

Networked Sequencer - Storyboard Engine

lua

Show code

1-- Suspends local execution until server confirmation is received
2local function register_replicate_context(self: StoryInternal, context_id: string)
3    local pending = self._PendingReplicateContexts[context_id] or {}
4    self._PendingReplicateContexts[context_id] = pending
5
6    local promise = self._Maid:AddPromise(Promise.new(function(resolve, reject, on_cancel)
7        local callback = function(confirmed)
8            self._ContextData[context_id] = confirmed
9            resolve(confirmed)
10        end
11        table.insert(pending, { callback = callback, startTime = os.clock() })
12    end))
13    table.insert(self._ActiveReplicatePromises, promise)
14    return promise
15end
16
17function Story.ReplicateContextAsync(self: StoryInternal, context_id: string, data: any)
18    if RunService:IsServer() then
19        -- Server validates and broadcasts confirmed state to all peers
20        Networking:BroadcastContext(self.Id, context_id, data)
21        return Promise.resolve(data)
22    end
23
24    if self.RunMode == "Subject" then
25        -- Subject sends hit claim to server and waits for confirmation
26        Networking:ReplicateContext(self.Id, context_id, data)
27        return register_replicate_context(self, context_id)
28    end
29
30    if self.RunMode == "Observer" then
31        -- Observers wait passively for server broadcast
32        if self._ContextData[context_id] ~= nil then
33            return Promise.resolve(self._ContextData[context_id])
34        end
35        return register_replicate_context(self, context_id)
36    end
37end

LuauSpatial QueriesState SynchronizationServer Authority

Voxel Destruction Engine

lua

Show code

1
2-- Custom hitboxes using SAT theorm
3local function is_block_intersecting_aabb(part_cframe, part_size, box_cframe, box_size)
4    local D = part_cframe.Position - box_cframe.Position
5    local half_part = part_size / 2
6    local half_box = box_size / 2
7
8    local L = get_cframe_axes(part_cframe)
9    local E = { Vector3.xAxis, Vector3.yAxis, Vector3.zAxis }
10
11    local function check_axis(axis)
12        local t = math.abs(D:Dot(axis))
13        local Ra = (half_part.X * math.abs(L[1]:Dot(axis))) +
14                   (half_part.Y * math.abs(L[2]:Dot(axis))) +
15                   (half_part.Z * math.abs(L[3]:Dot(axis)))
16        local Rb = (half_box.X * math.abs(E[1]:Dot(axis))) +
17                   (half_box.Y * math.abs(E[2]:Dot(axis))) +
18                   (half_box.Z * math.abs(E[3]:Dot(axis)))
19        return t <= (Ra + Rb)
20    end
21
22    for i = 1, 3 do if not check_axis(L[i]) then return false end end
23    for i = 1, 3 do if not check_axis(E[i]) then return false end end
24    return true
25end
26-- Recursive subdivision
27local function check_voxelisation(hitbox_cframe, hitbox_size, hitbox_shape, cframe, size, shape, MIN_SIZE, THRESHOLD, voxels, debris, iteration, MAX_ITER)
28    if iteration >= MAX_ITER then return voxels, debris end
29
30    local can_voxelise, new_voxels = voxelise(cframe, size, shape, MIN_SIZE, THRESHOLD)
31    if not can_voxelise then
32        table.insert(debris, {cframe, size})
33        return voxels, debris
34    end
35
36    local intersecting = get_intersect_block(hitbox_cframe, hitbox_size, new_voxels)
37
38    for _, set in new_voxels do
39        if not table.find(intersecting, set) then table.insert(voxels, set) end
40    end
41
42    for _, set in intersecting do
43        check_voxelisation(
44            hitbox_cframe, hitbox_size, hitbox_shape,
45            set.cframe, set.size, set.shape,
46            MIN_SIZE, THRESHOLD, voxels, debris, iteration + 1, MAX_ITER
47        )
48    end
49    return voxels, debris
50end
51
52-- Replication of debris and debris transformation
53-- SerDes
54local position_sd = squash.f32()
55local rotation_sd = squash.f32()
56local DEBRIS_ID_SQUASH = squash.string(8)
57
58local DEBRIS_REPLICATION_RECORD = squash.record {
59    part_id = squash.T(DEBRIS_ID_SQUASH),
60    position = squash.T(squash.Vector3(position_sd)),
61    rotation = squash.T(squash.Vector3(rotation_sd))
62}
63
64-- SERVER: Binary serialization of debris transforms
65local function get_buffer(debris: BasePart)
66    local cursor = squash.cursor()
67    local x, y, z = debris.CFrame:ToEulerAnglesXYZ()
68
69    DEBRIS_REPLICATION_RECORD.ser(cursor, {
70        part_id = debris.Name,
71        position = debris.CFrame.Position,
72        rotation = Vector3.new(x, y, z)
73      })
74    return squash.tobuffer(cursor)
75end
76
77-- CLIENT: Batched spatial interpolation
78step_connection:Connect(function(dt)
79    local parts, cframes = {}, {}
80
81    for part, target_cframe in client_active_debris do
82        if part.CFrame ~= target_cframe then
83            table.insert(parts, part)
84            table.insert(cframes, part.CFrame:Lerp(target_cframe, 0.175))
85        end
86    end
87
88    if #parts > 0 then
89        -- Fires CFrame updates for thousands of parts in a single C++ call
90        workspace:BulkMoveTo(parts, cframes)
91    end
92end)
93

LuauSpatial QueriesAlgorithmsParallel LuauBinary SerialisationNetwork Optimisation

Dialogue System

lua

Show code

1-- Dialogue is an easily customisable class
2dialogueIndex = {
3        [1] = "Ah, another adventurer seeking the finest craftsmanship! I've got just the thing for you.",
4        [2] = "Take a look at this beauty. Forged with care and reinforced with enchanted steel, it'll withstand the toughest of battles. A true masterpiece, if I say so myself",
5
6        -- Interaction --
7        [3] = "Goodbye",
8        [4] = "Ok",
9        [6] = "Claim Loot"
10},
11
12dialogue = {
13  [1] = function(session: dialogueClasss)
14      local dialogue = require(ReplicatedStorage.client.dialogue)
15
16      session:reset()
17      session:text(1, true)
18      session:manifest()
19      session:wait()
20      session:button(4)
21      session:onButton(4):Wait()
22
23      session:reset()
24      session:text(2, false)
25      session:wait()
26      session:loot({
27              [dialogue.lootModifier.icon] = "rbxassetid://13812120467",
28              [dialogue.lootModifier.text] = "Iron Sword",
29              [dialogue.lootModifier.lootType] = dialogue.lootType.item,
30              [dialogue.lootModifier.quantity] = 1,
31      })
32      session:button(6, {
33              [dialogue.buttonModifier.backgroundColor] = Color3.fromRGB(86, 255, 67),
34              [dialogue.buttonModifier.shadowColor] = Color3.fromRGB(40, 40, 40)
35      })
36      session:button(3)
37      session:onButton(6):Once(function()
38              session:Destroy()
39      end)
40      session:onButton(3):Once(function()
41              session:Destroy()
42      end)
43  end
44}
45

A responsive dialogue system with a polished UI that I designed and implemented myself, focused on smooth interaction.

LuauUI DesignUX DesignUI Coding

Inventory System

Open link

lua

Show code

1-- First In First Out Transaction Queue
2-- Queues requests to ensure inventory state mutations are handled strictly
3-- One at a time per player, preventing item duplication exploits.
4local function request_transaction(player: Player, callback)
5    local queue = get_transaction_queue(player)
6
7    return queue:Enqueue(function()
8        return Promise.new(function(resolve, reject)
9            -- Craftsman.DataServer handles the Reflex immutable state updates
10            Craftsman.DataServer:UpdateState(player, function(state)
11                local new_state = Craftsman.TableUtil.DeepClone(state)
12                callback(new_state, resolve, reject)
13                return new_state
14            end)
15        end)
16    end)
17end
18
19-- Strict Binary Networking Schema using ByteNet Max
20-- It compresses inventory operations into really small byte payloads
21return ByteNet.defineNamespace("Inventory", function()
22    return {
23        packets = {
24            DragItem = ByteNet.definePacket({
25                value = ByteNet.struct({
26                    SourceSlot = ByteNet.optional(ByteNet.uint8),
27                    SourceLocation = ByteNet.optional(ByteNet.string),
28                    TargetSlot = ByteNet.optional(ByteNet.uint8),
29                    TargetLocation = ByteNet.optional(ByteNet.string),
30                }),
31            }),
32            SplitItem = ByteNet.definePacket({
33                value = ByteNet.struct({
34                    SourceSlot = ByteNet.uint8,
35                    Quantity = ByteNet.uint16,
36                }),
37            }),
38        },
39    }
40end)

This inventory UI, Frontend Coding and Backend Coding is completed in 7h within a day of dedicated working.

A rigid inventory system designed with data safety in mind. It is designed fundementally to prevent duplication exploits and data issues. (This is open source so you can check if you click here)

LuauTransaction QueueingBackend SecurityUI DesignUX DesignUI Coding

Why Me?

Professional workflow, secure systems designs, and responsiveness.

01 DevOps & Tooling

Modern Professional Workflow

I use a modern Roblox development pipeline using Rojo and Git + GitHub, it enables professional source control, modular code management, and higher efficiency. Alternatively, I am also prepared to work directly in Roblox Studio with only the necessary packages if the project requires it.

json

1{
2  "name": "adventure-inventory",
3  "tree": {
4    "$className": "DataModel",
5    "ReplicatedStorage": {
6      "Packages": {
7        "$path": "Packages"
8      },
9      "Shared": {
10        "$path": "src/Shared"
11      },
12      "Client": {
13        "$path": "src/Client"
14      },
15      "CraftsmanConfig": {
16        "$path": "src/CraftsmanConfig.luau"
17      }
18    },
19    "ServerScriptService": {
20      "$className": "ServerScriptService",
21      "Server": {
22        "$path": "src/Server"
23      },
24      "Bootstrap": {
25          "$path": "src/Bootstrap.server.luau"
26      }
27    },
28    "StarterPlayer": {
29      "$className": "StarterPlayer",
30      "StarterPlayerScripts": {
31        "$className": "StarterPlayerScripts",
32        "Bootstrap": {
33          "$path": "src/Bootstrap.client.luau"
34        }
35      }
36    }
37  }
38}
39

02 Architecture

Craftsman Framework Integration

All of my systems are built on top of the Craftsman Framework, a modular Roblox framework engineered for high concurrency environments. Craftsman is a framework tailored to boost efficiency to the next level, so hours of time are not spent on writing common or repetitive code.

lua

1local Craftsman = {
2	Component = Component, -- Module Loader
3	Player = Player, -- Player Management
4	Entity = Entity, -- Character & Entity Management
5	Queue = Queue, -- Task Queue System
6
7	DataServer = DataServer, -- Server Data Manipulation
8	DataClient = DataClient, -- Client Data Access
9	MarketServer = MarketServer, -- Server Marketplace Logic
10	MarketClient = MarketClient, -- Client Marketplace Access
11
12	InputUtil = InputUtil, -- User Input Handling
13	PrintUtil = PrintUtil, -- Debugging and Printing
14	TableUtil = TableUti, -- Table Manipulation Utilities
15
16	AnimationUtil = AnimationUtil, -- Animation Handling
17	SoundUtil = SoundUtil, -- Sound Handling
18
19	MathUtil = MathUtil, -- Math Utilities
20	StringUtil = StringUtil, -- String Utilities
21
22	Config = Config, -- Configuration Management
23}

03 Security

Reliable Systems Design

Security and optimisation is the foundation of all systems. Using transaction queueing, strict server authority, and network binary serialization, my systems compress payloads to the absolute minimum while preventing common bugs like item duplication.

lua

1-- Secure first in first out transaction queue to ensure race conditions bugs do not create the opportunity for critical bugs such as item dupes in complex inventory interactions.
2local function get_transaction_queue(player: Player)
3	local queue = transaction_queues[player]
4	if not queue then
5		queue = Craftsman.Queue.new({
6			RetryOn = false,
7			DefaultTimeout = 4,
8		})
9		transaction_queues[player] = queue
10	end
11
12	return queue
13end
14
15-- Requests a transaction for the player, it will be queued and executed sequentially to prevent async race conditions
16local function request_transaction(player: Player, callback)
17	local queue = get_transaction_queue(player)
18	local promise = queue:Enqueue(function()
19		return Promise.new(function(resolve, reject)
20			Craftsman.DataServer:UpdateState(
21				player, function(state)
22				local new_state = Craftsman.TableUtil.DeepClone(state)
23				callback(new_state, resolve, reject)
24				return new_state
25			end)
26		end)
27	end)
28
29	return promise
30end

04 Availability

High Availability & Fast Execution

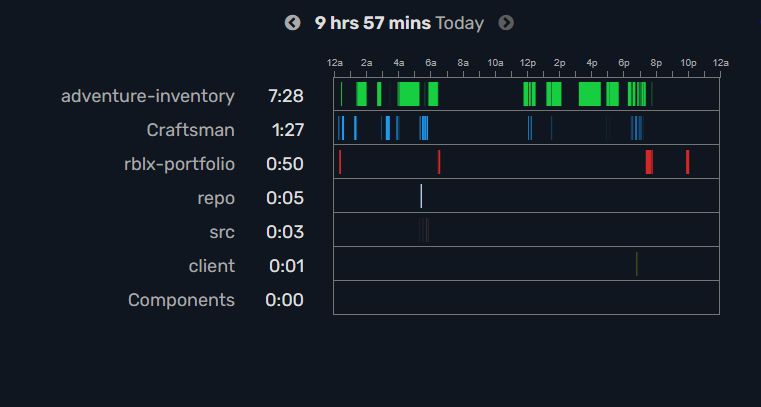

I commit to transparent, rapid development with productive hours. Whether its implementing complex systems from scratch or scripting a rich UI. I can deliver robust, production ready code with extreme efficiency. Such as, designing a full inventory UI, scripting the frontend and backend in under 7 hours.

Rapid Completion Speed

8+ Hours Daily Availability

< 2 Hour Response Time

100% Code Quality Guarantee

Contact

Let's build something amazing together. Reach out via any of the channels below.

Send a Message

ark@craftsman.systems

Mail me ↗

Discord

Connect on Discord

@uark

Connect ↗

Roblox

Roblox Profile

@averyark

Open profile ↗
